SimpleAddon

Our Simple Add-Ons are small applications to extend your ArchiCAD’s core functionality.

video

The easiest way to create a simple polyline and a label
showing the travel distance.


  • Creates polylines and labels to show the travel distance
    for emergancy case.
  • Recalculate automatically the travel distance when the
    plolyline shape is modified.
  • Set the height of the segmenst of the travel distance line
    in case of stairs.
  • Set the connected travel distance length ie. in case
    of building with multiple floors.
  • Using ArchiCAD® polyline and text elements.

  • OS: Windows, MAC OSX 10.4 or higher.
im_2

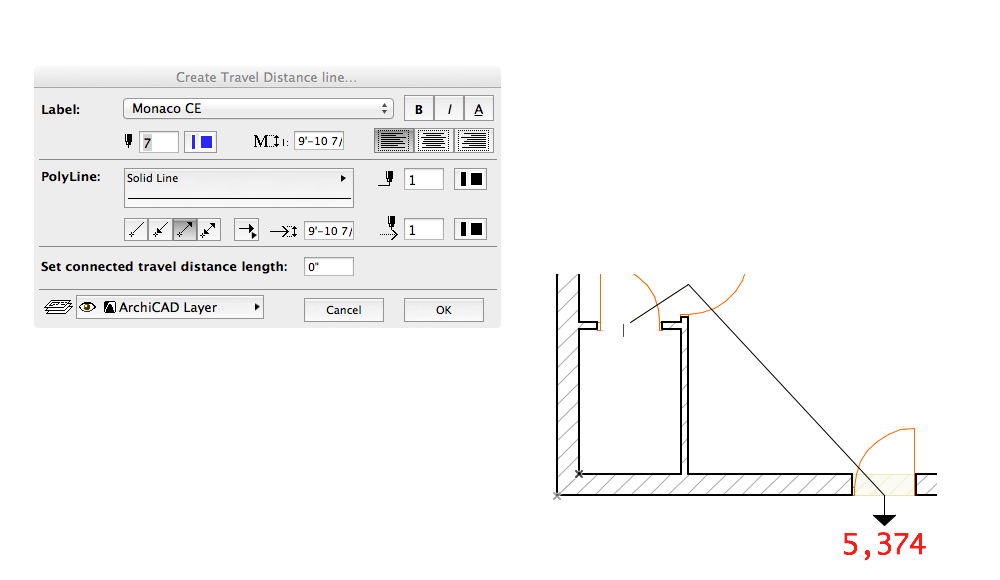

Create polylines and labels to show the travel distance

1. Start the Travel distance add-on.

2. Set the label properties.

3. Set the polyline properties.

4. Set the connected travel distnce.

The labels will be created based on your input automatically!

im_2

You can find the Zone Name Simple Add-On under the Document menu:

im_1
