Create a simple roof support following a polyline.

  • Using ArchiCAD® default purlin, post and strut objects.
  • Creates and places them alongside the given polygon.
  • Set the level, height, post distance of the simple roof supports.

  • OS: Windows, MAC OSX 10.4 or higher.

Two simple steps, and roof support is placed based on the given polyline.

1. Set a polyline.

2. Start Roof Support.
Set roof support data.

Roof support objects are created and
placed based on the given polyline!

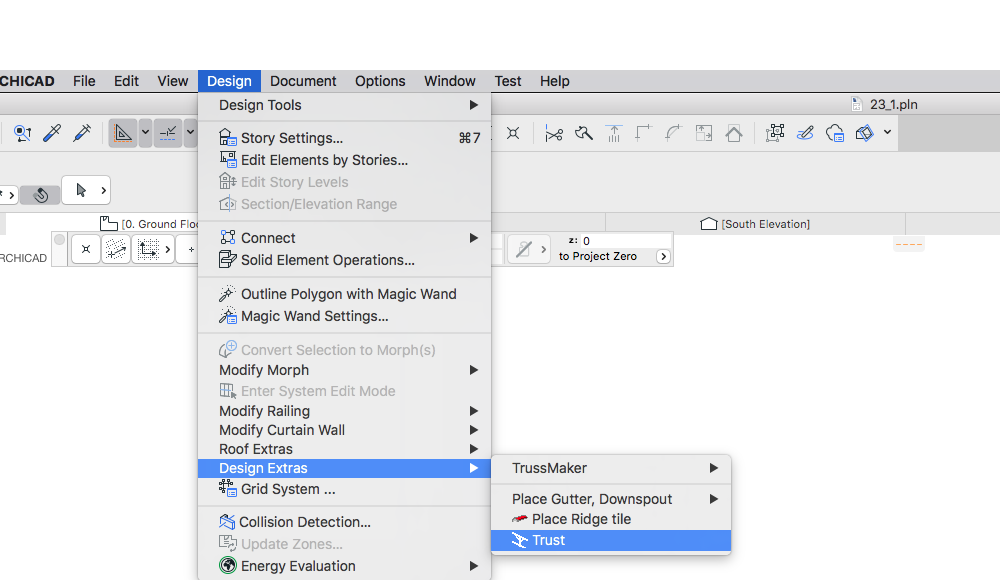

You can find the roof support Simple Add-On under the Design menu:
